How to Install Fogger Sprinkler System for Maximum Heat Control 2

How to Install Fogger Sprinkler System for Maximum Heat Control

Agar aap apne poultry farm, polyhouse, ya garden ke liye Automatic Fogger System install karna chahte hain, toh ye guide aapke liye hai. Sahi installation se aap garmi me temperature ko 10-15°C tak kam kar sakte hain.

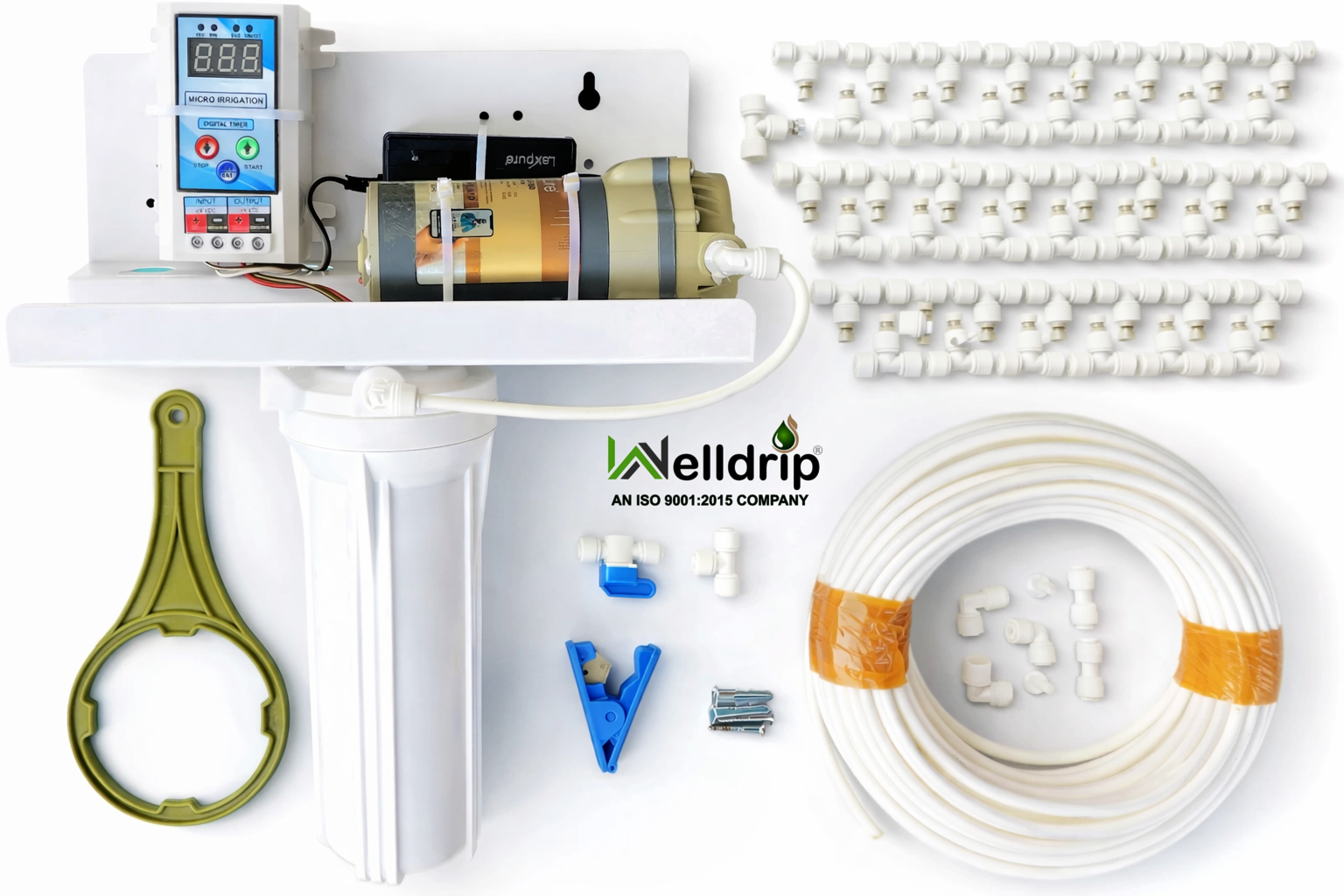

Essential Components of a Fogger Kit

Installation shuru karne se pehle ye components check kar lein:

  • Imported Brass Nozzles: Ye nozzles ultra-fine mist produce karte hain aur clogging ko resist karte hain.

  • High-Pressure UV Pipe: Ye durable aur dhoop me kharab nahi hone waali pipeline hai.

  • 140-Mesh Filter: Ye kachre ko rok kar nozzles ko jaam hone se bachata hai.

  • T-Connectors: Easy fitting ke liye high-grade plastic tees.

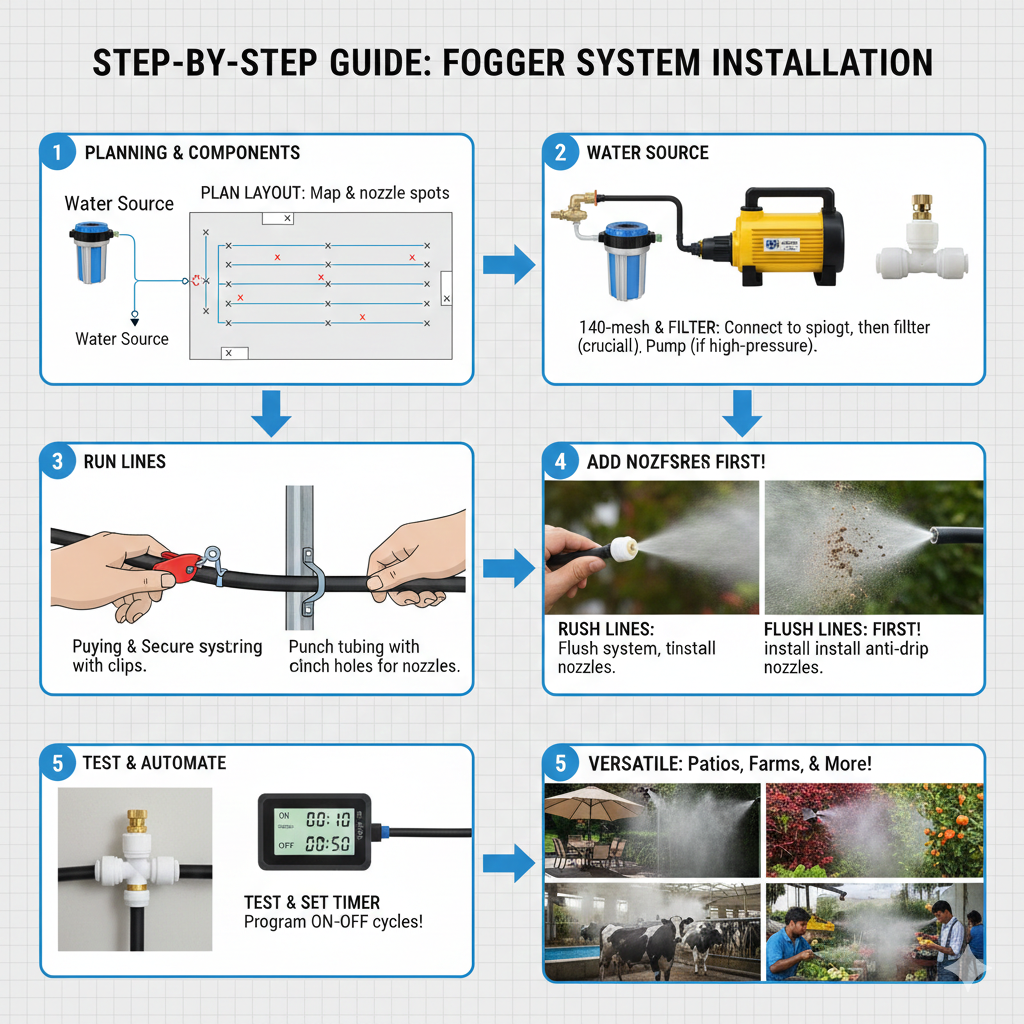

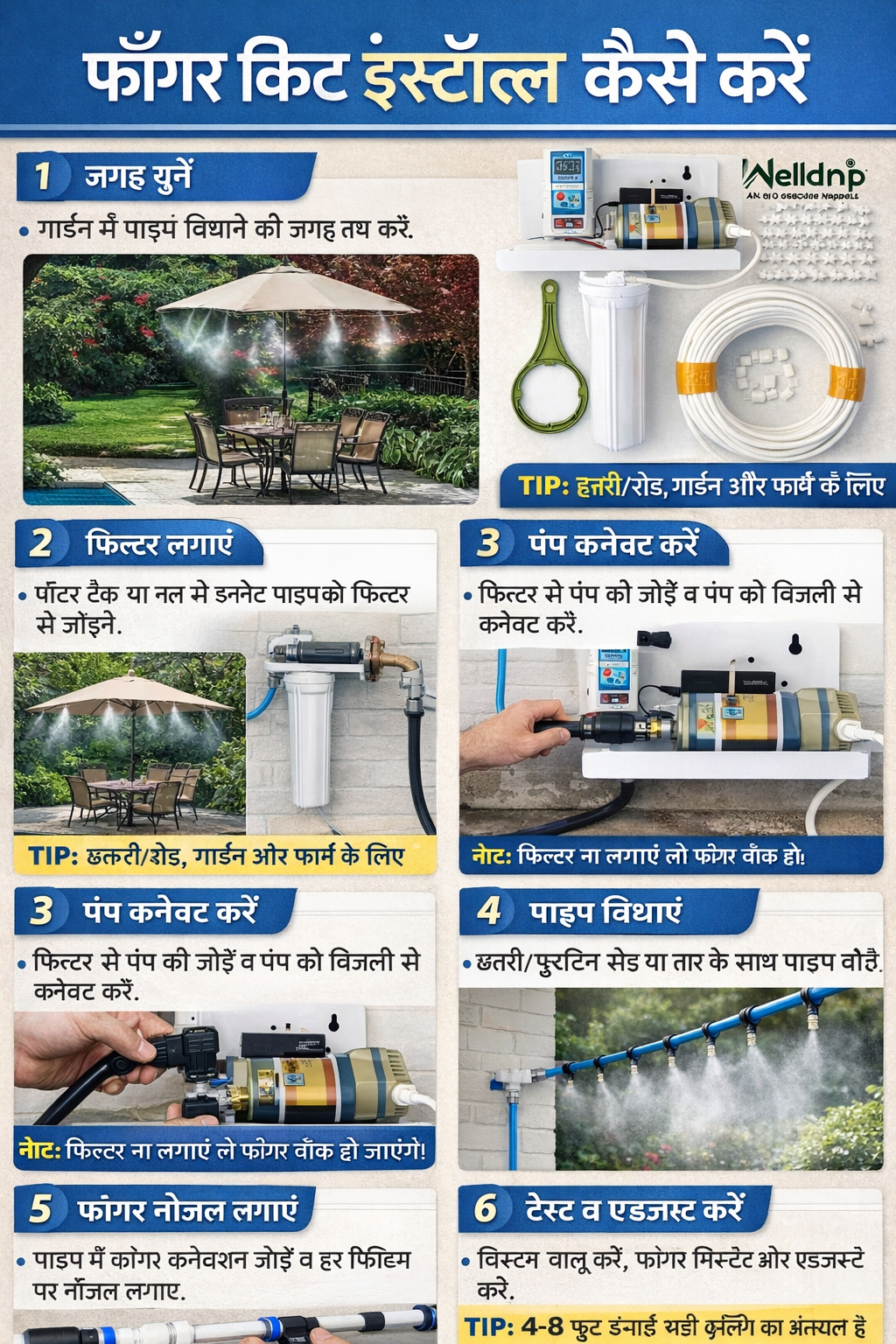

Step-by-Step Installation Guide Fogger Sprinkler System

Step 1 - Planning and Measuring

Sabse pehle area ko measure karein aur marking lagayein.

  • Lines ko ground se 8-10 feet ki height par lagayein.

  • Nozzles ke beech me 3-5 feet ka gap rakhein taaki uniform cooling mil sake.



Step 2 - Filtration and Water Connection

Paani ka connection dene se pehle filter lagana sabse zaruri hai.

  • Tap ya pump ke baad 140-mesh disc filter install karein.

  • Isse aapke Brass Nozzles kabhi jaam nahi honge aur unki life badh jayegi.

Step 3 - Running the Pipeline

UV-protected pipe ko structure (shed ya rafters) par clamps ya cable ties ki madad se fix karein. Pipe ko hamesha tight rakhein taaki wo beech me se latke nahi.

Step 4 - Flushing and Nozzle Fitting

Nozzles lagane se pehle system ko flush karna zaruri hai.

  • End caps khol kar 1 minute tak paani full pressure me chalu karein.

  • Jab pipe saaf ho jaye, tab Imported Nozzles with Tee ko pipe me fit karein.

Step 5 - Automation with Timer

System ko behtar chalane ke liye ek Digital Cyclic Timer ka use karein. Ise 10 seconds ON aur 50 seconds OFF ke cycle par set karein.



Performance and Technical Specifications Table

Yeh table hamare Fogger Misting System ki efficiency aur output ko darshati hai:

Feature (Khasiyat) Performance Detail Benefits (Fayde)
Cooling Efficiency 10°C to 15°C temperature drop Garmi mein pashuon aur paudhon ko rahat milti hai
Nozzle Type Imported Brass with Anti-Clog Tee Long-lasting aur jaam (clog) nahi hote
Misting Quality Excellent Ultra-Fine Mist "Flash Evaporation" se floor geela nahi hota
Material Quality High-Grade Plastic & UV Resistant Dhoop mein pipe kharab nahi hota
Water Requirement 6.5 to 28 LPH (Liters Per Hour) Paani ki bachat aur behtar cooling
Pressure Range 3.5 Bar to 70 Bar Low aur High pressure dono par kaam karta hai
Filtration Needed 140-Mesh Disc Filter (Crucial) Nozzles ki life 3 guna badh jati hai



Applications: Hum Yeh Fogger System Kahan-Kahan Use Kar Sakte Hain?

Aapka Pure & Cure Fogger Kit ek versatile solution hai jo sirf farm tak सीमित nahi hai. Niche diye gaye areas mein iska best use hota hai:

1. Dairy and Cattle Farms

  • Livestock Cooling: Buffaloes aur cows ke shed mein temperature kam karke unhe heat stress se bachata hai.

  • Milk Production: Thanda mahaul hone se pashuon ka dudh dene ka capacity maintain rehti hai.

2. Poultry Farms (Chicken Sheds)

  • Mortality Control: Garmi mein murghiyon ko marne se bachane ke liye ye system best hai.

  • Dry Litter: Ultra-fine mist hawa mein evaporate ho jati hai, jisse shed ka floor geela nahi hota.

3. Polyhouse and Greenhouse

  • Microclimate Control: Flowers aur exotic vegetables (jaise Broccoli, Lettuce) ke liye humidity maintain karta hai.

  • Plant Health: Paudhon ko scorched leaves (pattiyaan jalne) se bachata hai.

4. Restaurants and Outdoor Patios

  • Customer Comfort: Hotels aur outdoor sitting areas mein umbrella ya roof par lagakar thandak pradan karta hai.

  • Dust Control: Ye hawa mein udti dhul ko bhi control karta hai.

5. Vegetable Carts and Fruits Shops

  • Freshness: Vegetable vendors aur carts par iska use karke sabziyon ko pura din taza (fresh) rakha ja sakta hai.

6. Gardens and Play Areas

  • Fun & Cool: Kids' play areas, trampolines, aur residential gardens mein garmi se rahat ke liye lagaya ja sakta hai.



Why Our Fogger Kit is Best?

  • Excellent Misting Effect: Ye kit "Flash Evaporation" technique par kaam karti hai jisse zameen geeli nahi hoti.

  • Multi-Purpose Use: Restaurants, Dairy Farms, Vegetable Carts, aur Greenhouse ke liye ideal hai.

  • Anti-Drip Design: Paani band hone par dripping nahi hoti, jo poultry farms ke liye best hai.



Contact Us for Expert Advice & Bulk Orders

Kya aap apne farm ya business ke liye sahi Fogger System chunne mein confused hain? Hamari team aapki madad ke liye taiyar hai!

Chahe aapko Poultry Farm ke liye mortality control chahiye, Dairy Farm ke liye milk production badhana ho, ya Restaurant ke liye cool patio setup karna ho—hum aapko best solution denge.



Get a Custom Quote Today

Agar aapko apne area ke square footage ke hisaab se customized kit chahiye, toh humse sampark karein:



Why Reach Out to Us?

  • Free Consultation: Hum aapke farm ya garden ke size ke hisaab se nozzles aur pipe length calculate karke denge.

  • Bulk Pricing: Dairy farms aur polyhouse projects ke liye special wholesale rates available hain.

  • Technical Support: Installation mein koi bhi dikkat aane par hamare experts call par guide karenge.

  • Genuine Parts: Hum sirf Imported Brass Nozzles aur UV-resistant genuine kits hi provide karte hain.
